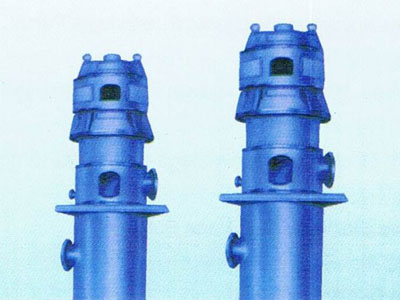

LDTN, LDTNA condensate pump
Release date：2013-10-22 00:00 Source：http://www.syips.com Click：
LDTN, LDTNA condensate pump is suitable for conveying fire (nuclear) power plant of a condensate gas condensate. Also can be used for NPSH or restriction on the installation base of transport materialized in the chemical process performance class in water medium. Temperature is not higher than 80 degrees Celsius. LDTN, LDTNA by cylinder, motor, pump, the motor shaft of four items, and parts delivery, installation debugging assembly at the scene. Condensate pump
Scope of performance
Traffic: 85-870 m3 / h
Head: 48 ~ 360 m
Structure.
LDTNA, LDTNB type pump is USES the overseas advanced technology development of new products, head has a single suction and double suction impeller two forms, shaft seal for packing seal, pump axial force by the motor.
LDTN (A, B) - P type pump is in the late ninety s the development of new products, advanced structure, the axial force of the pump by the pump itself, under the pump set lower prices, has the strong market competitiveness.
From the transmission direction, pump is counterclockwise.
