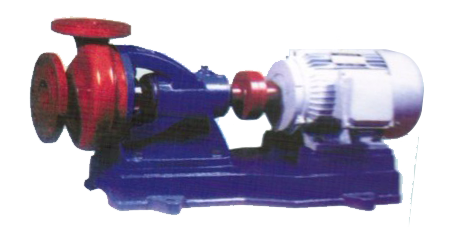

N. NL-type condensate pump
Category:condensate pump
- Clicks:
- Release date:2014/05/06
- Online Inquiry
Overview:
N-type condensate pump is used for thermal power plants and other similar transport
condensate condensate, other liquids. The pump has a better inhalation
performance. 100N130 and 150N1 10 pump can deliver120 ℃or less liquid, the other pumping the liquid temperature can not exceed80 ℃.
100N130 and 150N1 10 pump body and at packing gland can be done at the Walter
drain pump cooling water use.
Performance
range:
Flow rate Q = 8 ~120m. / H
Head H = 38 ~143m
Structure:
Pumps are horizontal, single or multi-stage, cantilever and with a variety of
structural forms inducer. 3N6, 4N6, 4N6Aand 100N130 single-stage pump for the condensate pump 2 5N3 × 2,3 N6 x2 and 4N6 × 2-type
pumps two condensate pumps. 6N6 and 150N110-type pump with a
single-stage-induced condensation pump. Pump soft packing seal, shaft seal with
the sleeve can be replaced.
Seal:
Pump soft packing seal, shaft seal with the sleeve can be replaced
Transmission:
Pump driven by motor through flexible coupling.
Direction from the drive, the pump is rotated counterclockwise.
Materials:
Cast iron pump body pump cover
Cast iron pump body seal ring sleeve
Silicon brass impeller (6N6 for the Al-Fe bronze
Inducer Al-Fe bronze
High-quality carbon steel shaft
